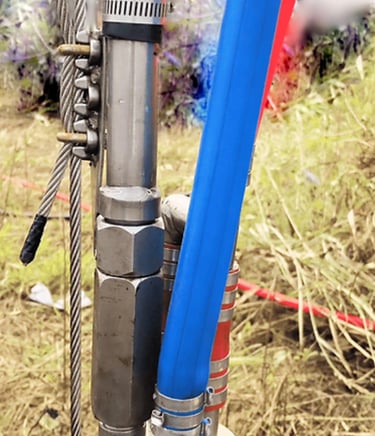

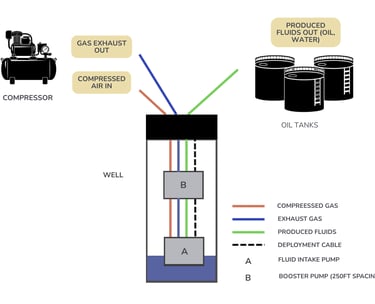

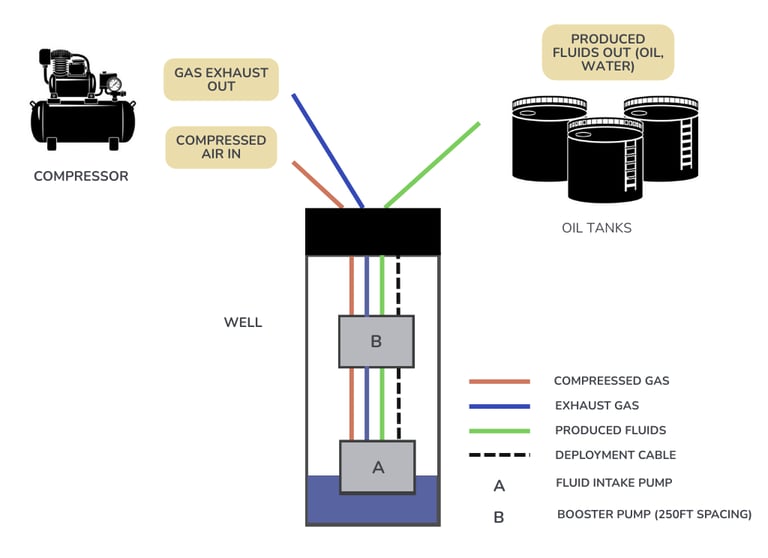

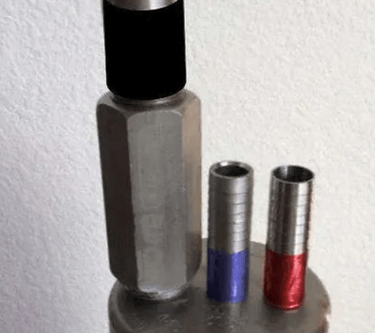

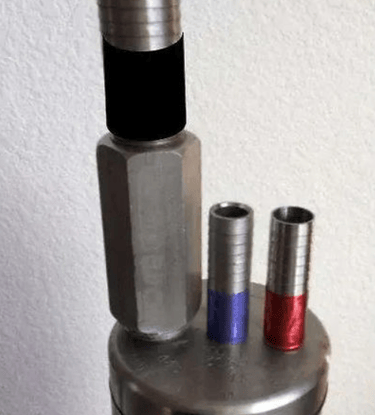

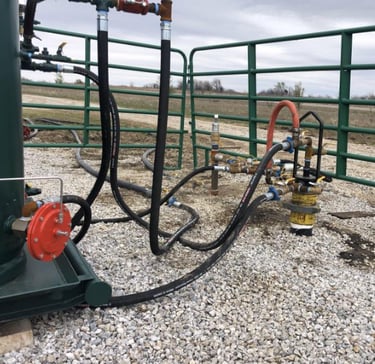

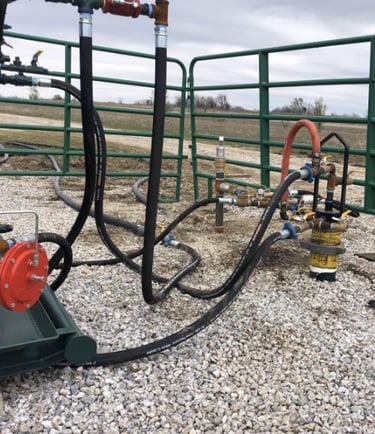

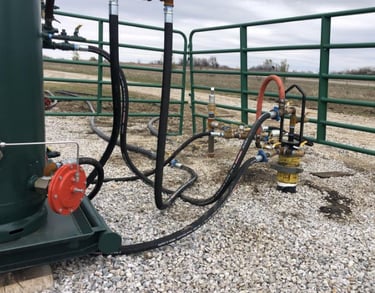

The Air Lift pumping system uses poly-pipe and has three color-coded fittings for ease of installation. The air-in (red) and the air-out (blue) lines are 3/4" poly pipe. The oil/fluid out line is 1" poly pipe.

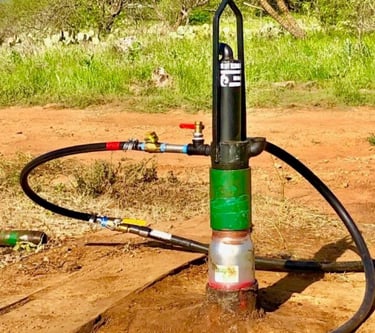

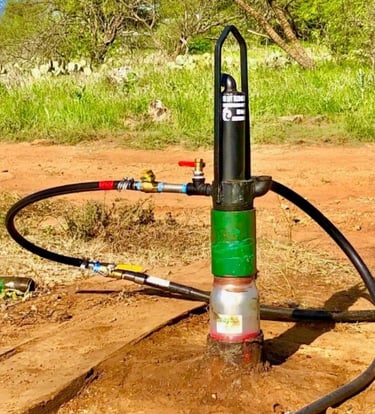

Three color system for easy installation. The pumps are secured to the surface with a cable supporting bracket system, using a 1/4" stainless steel cable to prevent corrosion.

Book a session with our team of engineers and inventors, who will customize an Air Lift Master Plan based on your well's specification.
